In electrical networks, it’s often circuits are series combination and parallel combination. These complex circuits can be simplified to a single resistor circuit theoretically using series and/or parallel formulas. But sometimes circuit’s element can’t be categorized as series or parallel. Therefore star to delta and delta to star conversion formula and calculator is used.

Take a look at the circuit below and you will observe that the R_{3} is kind of confusing and can’t be categorized as series or parallel.

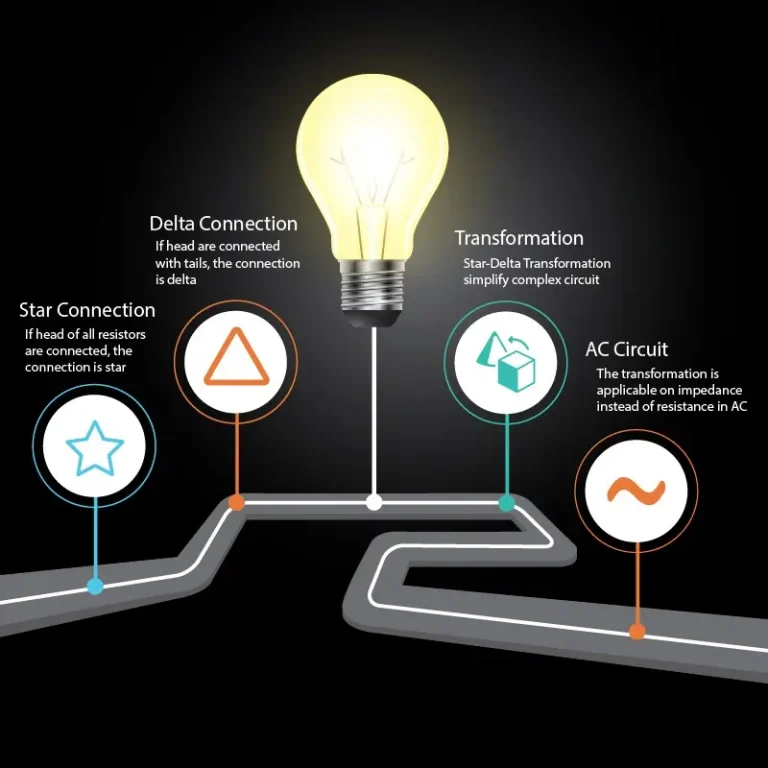

Such circuits have multilateral shapes with each node at the corner. The simplest shape is the three-node shape, based on the shape they can be categorized as Star (Y) or Delta (Δ) connections. Each shape can be transformed into another shape using some transformational techniques. Arthur Edwin Kennelly first time proposed the Star Delta conversion formula. The same conversion is also known as Star to Delta, T to π, and Star and Mesh conversion.

## Star to Delta Conversion Formula

If the head and tails of three circuit elements are such connected that it makes a closed loop, such connection is called Delta Connection. Take a look at the diagram below and you will find two different geometries with a similar connection.

To convert Star (Y) connection (on the left side) into the delta (Δ) connection (on the right side), the following formulas can be used.

- Testing Transistors in Circuits with Multimeters, Ohmmeter, and Curve Tracer
- What is a FET? FET Transistor Basics, Construction, Symbols, Characteristics Curves, and Types

$R_{ ab }=\frac { R_{ a }R_{ b }+R_{ b }R_{ c }+R_{ a }R_{ c } }{ R_{ c } }$

$ R_{ bc }=\frac { R_{ a }R_{ b }+R_{ b }R_{ c }+R_{ a }R_{ c } }{ R_{ a } }$

$R_{ ac }=\frac { R_{ a }R_{ b }+R_{ c }R_{ c }+R_{ a }R_{ c } }{ R_{ b } } $

## Star to Delta Conversion Formula Calculator:

## Delta to Star Conversion Formula

If the heads or tails of three circuit elements are connected together which provides a common point, such connection is called Star (Y) Connection. Take a look at the diagram below, there are two different geometries for exactly the same connection.

The conversion simplifies the circuit and converts the delta connection to Star equivalent connection. We already know the resistances of Delta connection on the left side and the formula for right side Star equivalent connection resistances are given below.

$R_{ ab }=\frac { R_{ a }R_{ b } }{ R_{ a }+R_{ b }+R_{ c } }$

$ R_{ bc }=\frac { R_{ b }R_{ c } }{ R_{ a }+R_{ b }+R_{ c } }$

$R_{ ac }=\frac { R_{ a }R_{ c } }{ R_{ a }+R_{ b }+R_{ c } } $

## Delta to Star Conversion Formula Calculator

## Star to Delta Transformation Example

Suppose the above circuit that we want to compute equivalent resistance of the following circuit. It’s pretty difficult to find whether R_{3} in series or parallel. By observing, we can find that there two delta connections inside the circuit. I pick the upper delta connection and convert it to Star.

- Analog and Digital Electronics for Engineers pdf Book
- Power Electronics Handbook by Muhammad H. Rashid

Given values of R_{1}, R_{2}, R_{3}, R_{4,} and R_{5} are 5Ω, 10Ω, 15Ω, 20Ω and 25Ω respectively. The corresponding Star equivalent resistor R_{12}, R_{23}, R_{13}, R_{4,} and R_{5}, where R_{4} and R_{5} are the same as above.

$ R_{ 12 }=\frac { 5×10 }{ 5+10+15 } =\frac { 5 }{ 3 }$

$R_{ 23 }=\frac { 10×15 }{ 5+10+15 } =5$

$ R_{ 13 }=\frac { 5×15 }{ 5+10+15 } =\frac { 5 }{ 2 } $

Now we can easily have identified all the resistances in the above diagram, such that R_{12} is in series with (R_{13} + R_{4}) || (R_{23} + R_{5}). So, the simple series-parallel calculation can be carried out as follow.

$R_{ Eq }=R_{ 12 }+\frac { (R_{ 1 }3+R_{ 4 })(R_{ 2 }3+R_{ 5 }) }{ (R_{ 2 }3+R_{ 5 })+(R_{ 1 }3+R_{ 4 }) }$

$R_{ Eq }=\frac { 5 }{ 3 } +\frac { \left( \frac { 5 }{ 2 } +20 \right) (5+25) }{ \left( \frac { 5 }{ 2 } +20 \right) +(5+25) }$

$R_{ Eq }=\frac { 5 }{ 3 } +\frac { \left( \frac { 45 }{ 2 } \right) 30 }{ \left( \frac { 45 }{ 2 } \right) +30 } =\frac { 5 }{ 3 } +\frac { 675 }{ \frac { 105 }{ 2 } }$

$ R_{Eq}≅14.51\Omega $

## Star to Delta Conversion in AC:

In AC circuits, impedance is playing the same role, resistance is playing in DC circuits. The complex quantity impedance is the combination of reactance and resistance and reactance is a combination of inductive and capacitive reactance. Fortunately, the above transformation is true for AC circuits having complex impedance instead of resistance.

For Δ-Y conversion:

- Top Tips on Hiring the Best Electrician in Town
- How to Figure KVA of a Transformer: Transformer KVA Calculator

$Z_{ ab }=\frac { Z_{ a }Z_{ b } }{ Z_{ a }+Z_{ b }+Z_{ c } }$

$ Z_{ bc }=\frac { Z_{ b }Z_{ c } }{ Z_{ a }+Z_{ b }+Z_{ c } }$

$ Z_{ ac }=\frac { Z_{ a }Z_{ c } }{ Z_{ a }+Z_{ b }+Z_{ c } }$

For Y-Δ conversion:

$ Z_{ ab }=\frac { Z_{ a }Z_{ b }+Z_{ b }Z_{ c }+Z_{ a }Z_{ c } }{ Z_{ c } }$

$ Z_{ bc }=\frac { Z_{ a }Z_{ b }+Z_{ b }Z_{ c }+Z_{ a }Z_{ c } }{ Z_{ a } }$

$Z_{ a }c=\frac { Z_{ a }Z_{ b }+Z_{ b }Z_{ c }+Z_{ a }Z_{ c } }{ Z_{ b } }$
