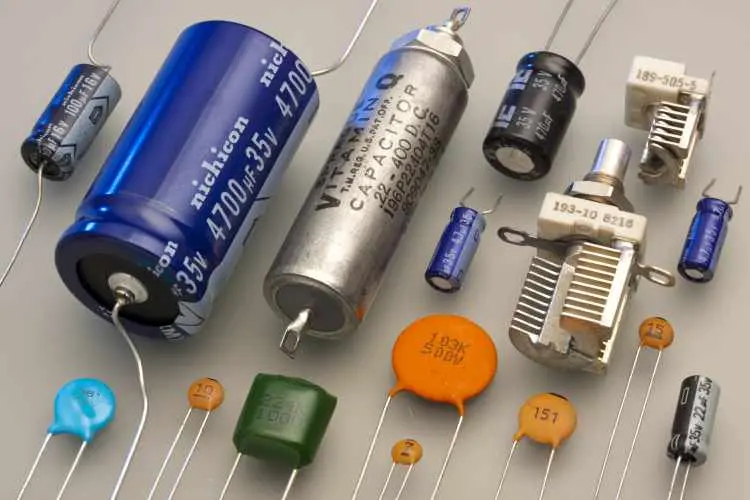

Capacitor types

What are the different types of capacitor and their construction

There are multiple types of capacitors available in the market each having different characteristics. The basic functionality of each type is the same but the material type and construction make it different from others. The main thing which mostly causes the differences between capacitors is the dielectric – the non-conducting material between conducting plates.

Commercial capacitors are mostly made of thin conducting plate separated by paraffin-impregnated paper. The combination is rolled up and shaped like a tube. Where small capacitors are made up of ceramic material and dipped in resin for packaging.

Capacitor Types :

Just like resistors, the capacitors are also mainly divided into two categories: Fixed Valued capacitor and Variable Type Capacitors. Each of them is explained below.

Fixed Capacitor :

mica capacitor :

The flat mica capacitor contains mica sheets between metal sheet in the form of multiple layers. Those conducting sheets are connected by a wire in a pattern. By using multiple layers, the area of the plate is increased.

Mica Capacitor Types

ceramic capacitor :

The ceramic capacitors are fixed capacitor made up from metallic plates separated by a ceramic sheet. The metal is coated on both surfaces of the ceramic sheet and leads are inserted. Ceramic has a high dielectric constant, so, a small package may give us a high capacitance value. The common metals are copper and silver. These capacitors are used in RF radio applications ranging from pico-farads to microfarads.

Normally three digits are printed over the ceramic capacitor, the first two of them shows the digits and the third one shows the number of zeros in pico-farads units. Suppose a capacitor with 154 number, the capacitor will have the capacitance of 150,000 pF.

Ceramic Capacitor

film capacitor :

The film capacitor is containing a large family of capacitors and most commonly available in the market. The film capacitor provides a wide range of values in capacitance. These capacitors are using polystyrene, polycarbonate, metalized paper, polypropylene or Teflon as their dielectric between the conducting plates.

Monolithic Capacitor:

Monolithic technology is gaining the interests in recent years because of being usable in discrete and Integrated Circuits (IC’s).

Electrolytic Capacitor :

Electrolytic capacitors are used in case of a high capacitor is required up few Thousands. The electrolytic capacitor is mainly used for dc source. Because its dielectric provides good insulation in one direction but conduct in another direction.

Electrolytic capacitor positive lead is connected with aluminum foil coated with aluminum oxide then paper saturated with an electrolytic then negative lead with aluminum foil. The distance between the conducting plates is small which cause high capacitance. Being polarized, the positive terminal of the capacitor is identified with an indication.

tantalum Capacitor :

Tantalum Capacitors are two types: first solid and second wet slug. Pure tantalum powder is pressed in the specific shape and then backed in vacuum to produce highly porous material. Thing surface of Manganese Oxide (MnO¬2¬) is introduced by immersion in an acidic solution. An electrolyte is then added for contact between surface area and cathode terminal where the anode terminal is attached to the pure tantalum powder for solid tantalum capacitor. For wet-slug tantalum capacitor and appropriate wet acid is introduced.

variable capacitor :

The dielectric of the variable type capacitor is always air. The construction of variable type capacitor contains a set of fixed metallic plates and a set of movable metallic plates. By rotating the movable plates, the common area between fixed and movable plate changes.

As per the capacitance formula, the capacitance changes with area change. The capacitance can be adjusted by rotating the know over the trimmer capacitor.

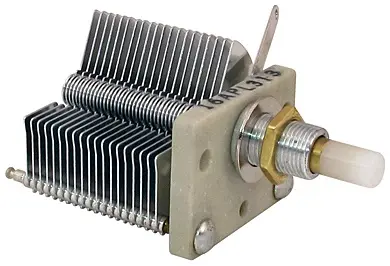

Variable Capacitors
